INTRODUCING

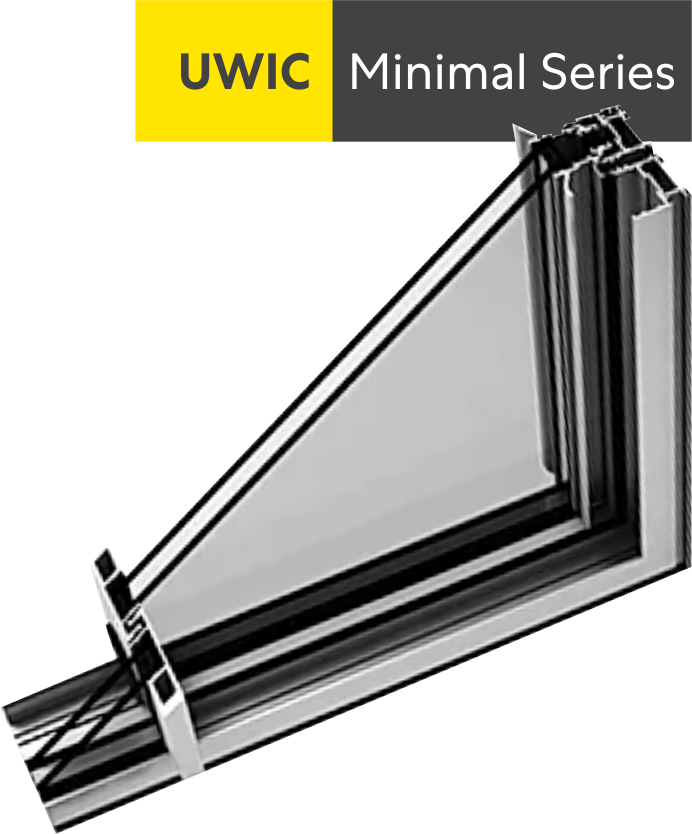

UWIC has design their own Minimal series which is one of the slimmest Aluminium system in India.
It Maximizes the View; this ultra-luxurious and minimal design is suitable for a wide range of buildings and villas.
This system has been designed to meet all the specific needs of quality with low maintenance even in case of heavy use.
Profile Alloy | 6063 |
Case Depth (mm) | 50 |
Wing Profile Width (mm) | 65 |
Profile Wall Thickness (Min-Max) | 1.4-1.7 |
Glass Thickness(mm) | 5-22mm |
Maximum Wing Weight (Max Kg) | 120Kg |
Multi Point Locking | Multi Point |
Face Width (mm) | 21 |
Mosquito mesh Solution | Yes |
Roller Bearing | Stainless Steel |
